My 74 build

Post by Silentknight85 on Mon Feb 06, 2017 2:17 pm

Ok, as many of you know, I've been working through a few issues with my 74. The issues are largely attributed to an accident that happened at some point in this car's life. I know it was in an accident because the front clip was replaced (salvage yard chalk still marks the parts that came from a 75 malibu) and the passenger side frame fork was cut off and welded back on (3/4" too short, however). Keep this accident in mind. It plays an important part in what I'm currently dealing with.

I was lucky enough to get a hold of new frame a few years ago, so my frame is set and just about everything on it has been replaced and ready for the body to be returned to it. There are a few minor differences between the 74 and 75 frame, but nothing that halted progress for long. The drive train is in place and progress is regularly being made on the the engine.

The frame was easy. Everything on the frame was easy. I went through and rebuilt or replaced everything. Again, there were a few issues, but mostly it was hassle free... that or I've just mentally blocked out any large problems I had.





The body is a different story. I'm not a body guy, but I am learning. I think I'm doing well. Time will tell, however. I took a class last winter at the local community college that covered all the body tech basics. I excelled in the class. It covered everything from popping dents with pick and hammer, to polishing up the paint for a show quality finish. I did very well, so I'm hopeful.

Back in 2010, I paid a guy a lot of money to do the body work on my car. I never assumed I'd ever touch a DA or a body hammer, or cut into sheet metal. I had no experience and figured I'd be better off paying someone else to do the work. This is what it looked like in 2010 prior to the "body guy":



This was the worst mistake of my young car-guy life. This guy screwed me. Royally screwed me. After 3 years, and an embarrassingly large amount of money, I retrieved the unfinished car in worse condition then it was when I sent it off to him. This is the condition after all that time:



Thus begins the actual body work on my car. The first thing I noticed was that the rear quarter panels were zip screwed on. The zip screws were then taped over and the whole quarters were shot with a black primer. Look past it fast enough and you might miss the fact that they weren't welded in place. So, I got it home and started organizing all the parts, hoping and praying that I didn't leave anything behind. The guy lived 6 hours away from me.



After the parts were out of the car and organized, I ripped off the front clip, unscrewed the quarter panels, removed the doors and started planning for getting the body off the frame. I was bound and determined to examine every inch of this car. I did not and still do not trust a single thing this bozo did.





One thing that I learned is that if I saw green tape, it means it was covering something up. There was green tape covering up several rust holes throughout the body. There was also green tape hiding the fact that the lower pinchweld on the passenger side of the firewall was missing. I'm not sure his actual intentions with the tape, but seeing as he thought I was coming down to see the progress on it, him hiding things he couldn't fix makes sense. Anyways, yes green tape. Lots of green tape hiding lots of unrepaired rust holes, missing metal, etc.. Like this (look closely by the passenger side inner fender bracket):



Upon further inspection:





Remember the accident I mentioned earlier? My theory is that the accident caused something large to push into the firewall/torque box area. I came across this conclusion because the torque box itself was slanted towards the rear of the car, where the drivers side torque box was not. When that happened, it damaged the pinch weld, which, after many years, led it to rotting away. Now, with no sealed pinch weld between the engine compartment and the cab, moisture got in and rotted away the floor board and everything in between. That's where I am at now. I am working on replacing the entire section. I had another post related to how the guy just slapped on the new floor pans on top of the rotted floor pans, without prepping them first. So, now I have no passenger front floor pan and a hole in my firewall.

I first started by removing the inner fender mount. This was not the best way to do this, I learned. I thought it would give me better access to the area to rebuild it. Little did I know, there are 3 layers in that section: torque box, floor pan, and firewall. 3 layers make up that pinch weld.


The rusty piece of "floor pan" that you can see at the bottom of the hole is a patch that someone put in. It obviously did nothing to keep moisture out.

Realizing that cutting the section out where I did made it pretty hard to put back together (I was dumb enough to cut through the beads), I decided to cut out a larger section. I'd repair this area as a whole and weld it back together. It would be easier. Or so I thought:



As you can see, I also tried to fix the torque box, without actually knowing what it looked like. Joe73 provided some pictures, and they helped me realize I was out of my league. There was no way I could accurately repair this area. I started hunting around for a replacement 'section'. The section included the firewall, torquebox and atleast part of the floor pan. I wanted the pinch weld section intact. Some of you mentioned desert valley auto parts. They were able to provide me with the section I needed. Here is the firewall section after I separated it from the torque box and floor pan pieces:



And here I am dissecting the affected area. Notice how bad some of the parts are rusted, warped, etc.. (also notice the bad patch attempts on the floor pan).















And two floor pans on top of each other. He used seam sealer to plug a rust hole in the lower panel, which you can see in the bottom right corner.


And that lead me to removing the floor pans and reinstalling the torque box innards (part of the rocker panel):


I mocked up the new firewall section. The beads and lines do not line up perfectly with the original section (different stamping machines, locations, etc.. most likey), but I can make it work and look good with some persuasion and body filler:



And this is where I am currently at. I wanted to get this area fixed first, before the body went back on the frame. Then I need to turn to other areas of the body. As of now, I need a new floor pan. Who would you guys recommend for floor pans for our cars? Sherman auto? OPG? Who sells the best pans?

Thanks!
avatar
Silentknight85
Donating Member
Donating Member

Street Cred : 4

Back to top Go down

Re: My 74 build

Post by Roadcaptain S3 on Mon Feb 06, 2017 5:41 pm

I admire your dedication. You're doing a heckuva good job and I look forward to watching your progress. I appreciate the post and your attention to detail.

It sucks that you have to do all this. I hear horror stories all the time about ****heads masquerading as body men. I think there are actually more turds out there than legit craftsmen.
My nitwit brother in law was one of them, til it caught up to him.

I've never bought any replacement panels, but I think that the floor pans are pretty much all manufactured by the same company.I think I would try to buy them from the best vendor with the best reputation and return policy just in case.

Keep at it!
avatar
Roadcaptain S3
Donating Member
Donating Member

Street Cred : 26

Back to top Go down

Re: My 74 build

Post by fasrnur on Mon Feb 06, 2017 9:03 pm

Silkentkniight85, I'm so sorry for getting bent over and it shoved up your....
I've been in the automotive industry in some sort of capacity now since 1975.
I've mostly been in the parts side of it but have done my own work since I was a wee tike. lol So, a LONG time! Very Happy I have never had the misfortune that you have, but I'm sure there are many many horror stories just like yours. Those "body men" should be taken out back and dealt with. Execution by body filler? lol I had the benefit of making friends with a neighbor that had done body work for years and we have done body work now for almost 30 years together. We have had cars that have won many awards and even made it on to a Hemmings Motors calendar one year with a car. What this "body man" did to you is terrible. I'm glad to see that you didn't let it get to you and make you throw in the towel on what looks like is going to be a very sweet ride when it's done. When it is done, you'll be able to stand back and pat yourself on the back and say...."I built it myself!" That's a great accomplishment not many can say. Be proud of yourself sir!

Now, for the question about floor pans? I work for LKQ which now owns Goodmark Industries. I know there is at least one LKQ Salvage yard in Michigan that you could call. Where it is at, I'm not sure. Goodmark is a company that GM has let certify the parts they sell as "GM quality restoration parts" That should tell you how good they are and fit. Here's a link to the floor pan pieces.
https://www.goodmarkindustries.com/p-9865-front-floor-patch-rh-73-77-a-2-door-31-l-4034-505-73r.aspx

Also before I sign of.....where did you get the hood? I want one like that, but haven't been able to find one. I like that the scoop actually is like the Z28's at the windshield.

Good luck, keep your chin up, and I wish you the best of luck on your project.
Jeff.....
avatar
fasrnur
G3GM Enthusiast
G3GM Enthusiast

Street Cred : 5

Back to top Go down

Re: My 74 build

Post by Damon23 on Mon Feb 06, 2017 9:15 pm

Just plug away, one project at a time. It seems to be a common theme, bodyshops and bodymen ripping people off. Especially the guy that does it on the side, takes your money and never works on the stuff. Shops that do insurance jobs are no fun either. They use your car as filler work and you get put on hold.

Damon23
G3GM Member
G3GM Member

Street Cred : 5

Back to top Go down

Re: My 74 build

Post by Silentknight85 on Mon Feb 06, 2017 9:23 pm

fasrnur wrote:
Also before I sign of.....where did you get the hood? I want one like that, but haven't been able to find one. I like that the scoop actually is like the Z28's at the windshield

I either got it from opgi.com or usbody.com. It was 09 when I bought it, so that's a bit fuzzy. Yeah, dude also chipped the fiberglass on the hood and scratched the hell out of my Recaro seat.
avatar
Silentknight85
Donating Member
Donating Member

Street Cred : 4

Back to top Go down

Re: My 74 build

Post by Silentknight85 on Tue Feb 07, 2017 12:42 pm

Damon23 wrote:Just plug away, one project at a time. It seems to be a common theme, bodyshops and bodymen ripping people off. Especially the guy that does it on the side, takes your money and never works on the stuff. Shops that do insurance jobs are no fun either. They use your car as filler work and you get put on hold.

Yeah, I agree. Back in 08 my truck went into a body shop for repair, after someone hit the side of the bed. Insurance covered it. They charged the insurance for a new bed panel, but it was never actually replaced. And then after about a year the paint started bubbling and leaking water. I should have taken it back, but never did. Now my passenger side bed panel, at the wheel well, is completed rotted out.


Last edited by Silentknight85 on Tue Feb 07, 2017 12:47 pm; edited 1 time in total
avatar
Silentknight85
Donating Member
Donating Member

Street Cred : 4

Back to top Go down

Re: My 74 build

Post by Silentknight85 on Tue Feb 07, 2017 12:45 pm

And I have a question regarding the firewall. What is the backwards 'Z' shaped cutout used for?


(Not my car).
avatar
Silentknight85
Donating Member
Donating Member

Street Cred : 4

Back to top Go down

Re: My 74 build

Post by 73ss on Tue Feb 07, 2017 7:19 pm

Silentknight85 wrote:And I have a question regarding the firewall. What is the backwards 'Z' shaped cutout used for?


(Not my car).

heater hoses, there should be a foam/rubber type filler that fits around the heater pipes.  Nice work you have done. Stinks that happened to you. I was fortunate to find that the guy that painted my car in the early 90's was still in business and doing well. I took my car to him last year for a fresh up.
avatar
73ss
G3GM Member
G3GM Member

Street Cred : 10

Back to top Go down

Re: My 74 build

Post by knightfan26917 on Sun Feb 12, 2017 11:31 pm

Roadcaptain S3 wrote:I admire your dedication. You're doing a heckuva good job and I look forward to watching your progress. I appreciate the post and your attention to detail.

^^^^ this ... oh my goodness, THIS.


Cort, www.oldcarsstronghearts.com
pig&cowValves.paceMaker * 1979 CC to 2003 MGM + 81mc
"Come along & share the good times while we can" | Lynn Anderson | 'Rose Garden'
avatar
knightfan26917
G3GM Senior Member
G3GM Senior Member

Street Cred : 8

Back to top Go down

Re: My 74 build

Post by Silentknight85 on Mon Feb 13, 2017 8:23 am

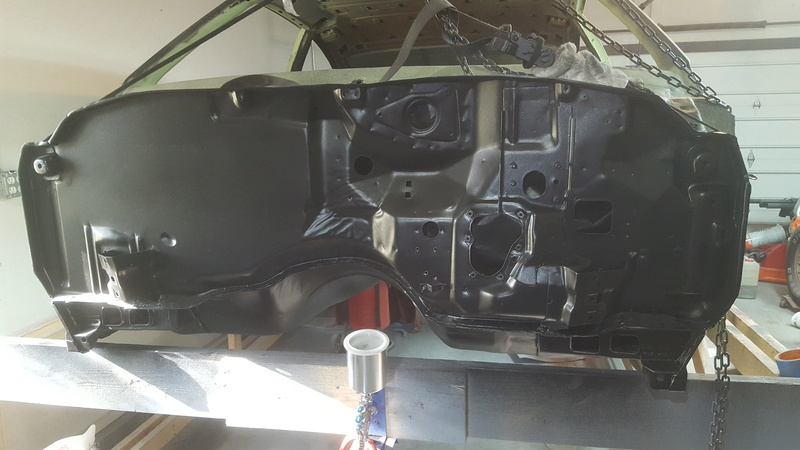

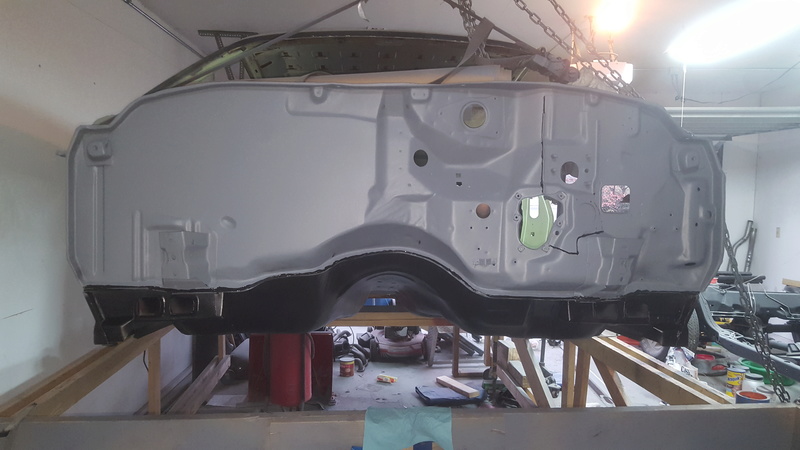

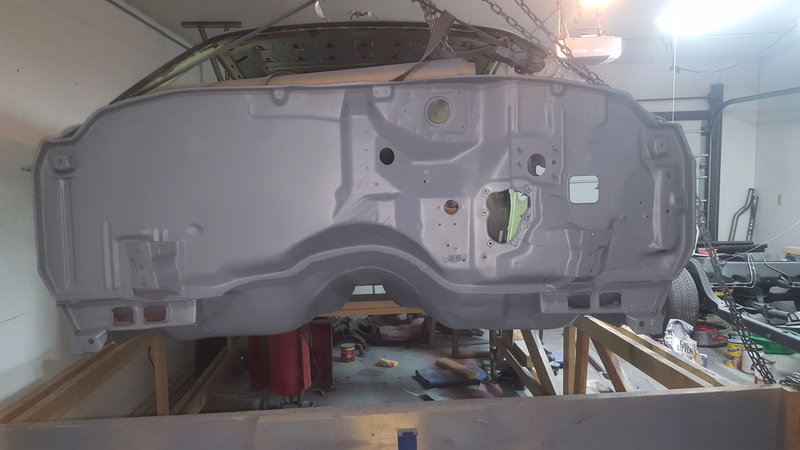

Got an update. The new firewall section is in place. I had to remove the sheet steel that was put in place to smooth this area of the firewall. My firewall, before the "body work" was actually quite nice, except for the missing pinch weld area. After removing the panel, I noticed that that he warped the firewall quite badly. I don't know exactly how he did it, but was very wavy near the blower motor cutout and near the top of the heater core cutout. On top of that, there are new dents everywhere, as if he swung a picking hammer randomly at the firewall. I also discovered that he cut the edges around the two holes and bent them inwards to flatten the panel. I don't know that that is the method I would have chosen, but ok, maybe it was the only way. But why is my firewall warped?? Asshat. Oh, he also left zip screw holes unwelded and unfilled. I know it was all covered up, but that's just dumb, lazy, and tacky.



I worked the metal to straighten it out as best as I could, welded up the screw holes, and some of the bigger holes. There's no reason to leave it unfinished, even if it is getting covered up again. It took me 30 minutes, maybe? It's the small stuff that matters. Anyways, The panel was pretty bad, so I couldn't get all the waviness out of it, I think it's stretched a bit, and I've never been good at metal shrinking, but it does look a lot better! I shot it with weld through primer and am going back to scuff it up and throw some fiberglass filler on the bigger holes and around the edges of the blower motor and heater core cutouts. I'm also contemplating properly patching off those two holes. I don't want to leave them open, but would also hate to permanently close them up, if I ever do want to get AC/heat in the car. It'd be a lot of work to make the firewall look good enough to leave uncovered, though. We'll see later on in life.


Then the next part was pretty simple. Weld in the new donor firewall section. By simple, I mean spending an hour making sure everything is perfectly lined up. I mocked up the three peices in this area needed to make sure it was aligned properly: The torque box, the upper floor plan sections, and the firewall piece. I tweeked it countless times until I felt it was just right. As mentioned in my first post, my firewall and the donor firewall weren't stamped exactly the same. I put a few tack welds in place and worked the new piece until it lined up. Mostly this was around the long depression at the left hand side, and around the corner where it meets up to the door jamb. That took me a few minutes but it lined up eventually. The only thing left that doesn't line up is the pinch weld. It's a bit too high, but I think I can solve that problem later on. After a couple hours of welding and grinding, I have a new firewall:



I still have to dress a few welds, and fill in a few holes, but that's minor, the real work is done. After the last weld is ground, I will be applying fiberglass filler, both inside and outside, to ensure zero moisture penetration at the weld sites. I want the original panel to look good, be sealed, and be worry free, before the panel goes on that will be used to smooth this area. But for now, this is where I'm at.
avatar
Silentknight85
Donating Member
Donating Member

Street Cred : 4

Back to top Go down

Re: My 74 build

Post by Silentknight85 on Mon Feb 13, 2017 8:51 am

Also, I thank you all for appreciating my dedication to doing this right. I have no tolerance for half assing things or taking short cuts, especially when a few extra minutes can mean the difference of a piss poor job and something to be proud of.
avatar
Silentknight85
Donating Member
Donating Member

Street Cred : 4

Back to top Go down

Re: My 74 build

Post by Hs1973 on Mon Feb 13, 2017 12:54 pm

Looks good. Just bevare of applaying any type of filler/Bondo on panels wich have primer on them. If your primer is spray can type, the filler wont adhere to it and will eventually Fall of, leaving space for moisture and rust. The only primer you can apply filler on top of, is 2 stage type where you have a primer and a hardner mixet together. If you want to do it the best Way. Then spray the panels with epoxy primer first then filler. That Way it will never rust, crack or Fall of.

I have been in the body business for 30 years, and have learned the hard Way to awoid using any spraycan type of primer on bodypanels. The only spray i use is weldtrough between panels. All other is either epoxy or the primer that my paintshop uses. Its more labor intensive and cost a little more, but its a better result in the end.
avatar
Hs1973
G3GM Member
G3GM Member

Street Cred : 5

Back to top Go down

Re: My 74 build

Post by Silentknight85 on Mon Feb 13, 2017 1:17 pm

Sounds good. I actually already have a half gallon of 2K epoxy primer. I'll go ahead and strip that panel and get it sprayed. Thanks for the info!
avatar
Silentknight85
Donating Member
Donating Member

Street Cred : 4

Back to top Go down

Re: My 74 build

Post by Hs1973 on Tue Feb 14, 2017 4:09 pm

You are welcome, a painter once told me that, if you place a rag soaked in paint thinner on the paint and it desolves it. You cant put Bondo on it, it will desolve the paint under it and nothing sticks to the panel, and everything will eventually Fall off. The only types of paint that can handle thinner is 2 stage automotive paints applied with a paint gun. You can get spraycans with 2 stage paints in them, you twist the bottom of the can and rattle it mixing the paint and hardner. I dont know if Bondo or fiberglass will adhere to those types. But im wery careful when putting Bondo on, that the surface is clean and if possible no paint exept epoxy filler/primer.
avatar
Hs1973
G3GM Member
G3GM Member

Street Cred : 5

Back to top Go down

Re: My 74 build

Post by Silentknight85 on Tue Mar 28, 2017 1:48 pm

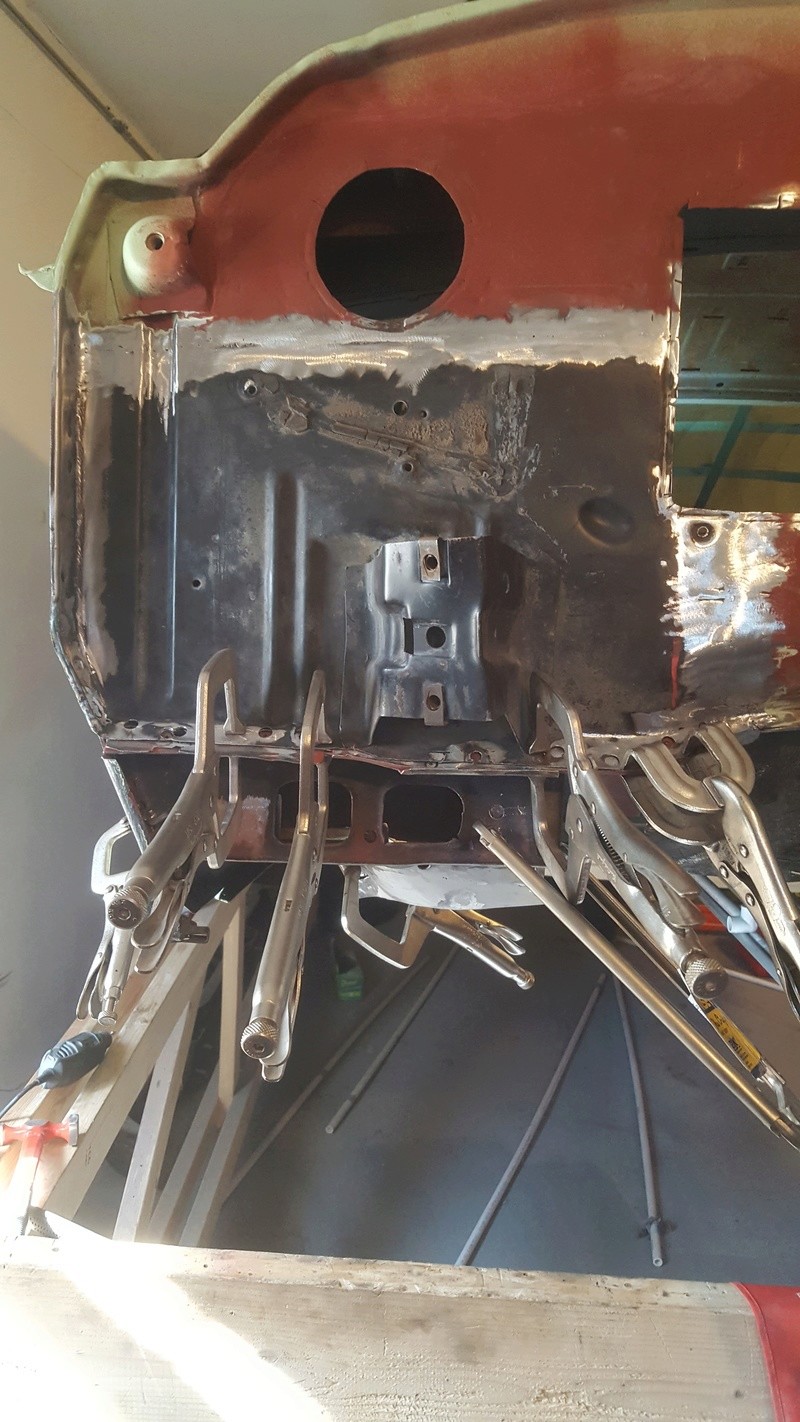

I haven't updated the post in a bit. Firewall is fully installed, with torque box and 'floor pan pieces' on the passenger side. I've removed all 4 front floor pans. Yes, you read that right. The person I paid to do the build welded the new floor pans on top of the rusted, rotted, nasty originial floor pans. Due to this the new pans were already very rusty and would only last a couple more years before they were rotted, as well. I got the driver side floor pan installed. I still need to weld a few spots, and then when the metal work is done on both pans, I'll be putting fiberglass filler on the weld seams and seam sealer on the edges of the pans over the rocker panels.

Oh, and yes, those are pretty big rosette welds on the firewall/torque box pinchweld. I'm new to rosette welds. But they ground down flush just fine (no pics of this, yet). I still need to finish smoothing all those welds out and then shaping the pinchweld to look more stock.

Finally some forward progress. I've been waiting years to get to the point where I am moving forward with this build.
















avatar
Silentknight85
Donating Member
Donating Member

Street Cred : 4

Back to top Go down

Re: My 74 build

Post by thatfnthing on Tue Mar 28, 2017 3:28 pm

Lookin' good! Thumbs up
avatar
thatfnthing
Donating Member
Donating Member

Street Cred : 55

Back to top Go down

Re: My 74 build

Post by Silentknight85 on Wed Mar 29, 2017 6:46 am

Thanks! When I' done with the floor pans and I finish up the firewall work, I'll be tending to the rear wheel wells and then the quarters. Hopefully this summer I will have the car back on the frame. Once that's done, then I can see the rest of the build moving really quickly. Reinstall the front and back glass, interior, wiring, engine compartment accessories.. prime, shape, paint. Okay, I just got excited.
avatar
Silentknight85
Donating Member
Donating Member

Street Cred : 4

Back to top Go down

Re: My 74 build

Post by Hs1973 on Wed Mar 29, 2017 7:55 am

Looks like you are getting the hang of it. The best work is the work you do yourself.
avatar
Hs1973
G3GM Member
G3GM Member

Street Cred : 5

Back to top Go down

Re: My 74 build

Post by Silentknight85 on Wed Mar 29, 2017 8:58 am

Hs1973 wrote:Looks like you are getting the hang of it. The best work is the work you do yourself.

I agree. At this point, I'm not sure I could trust anyone else to work on my cars. At least I know what's been done, when I do it.
avatar
Silentknight85
Donating Member
Donating Member

Street Cred : 4

Back to top Go down

Re: My 74 build

Post by thatfnthing on Wed Mar 29, 2017 9:09 am

Silentknight85 wrote:Okay, I just got excited.

Hang onto that -- that's what will keep you going when the project seems never-ending.
avatar
thatfnthing
Donating Member
Donating Member

Street Cred : 55

Back to top Go down

Re: My 74 build

Post by pila on Wed Mar 29, 2017 4:04 pm

You are a motivation expert now !! Great work on all those areas ! Very Happy

pila
Donating Member
Donating Member

Street Cred : 43

Back to top Go down

Re: My 74 build

Post by Silentknight85 on Mon Dec 04, 2017 8:52 am

Update:

The last time many of you saw the progress of my build, I had just welded in the driver side front floor pan, and was simultaneously repairing the passenger side of the firewall. I was only planning on replacing the front floor pans, but then found some crappy repairs with the rears so I did those, too. I'll let the pictures do the storytelling from here:

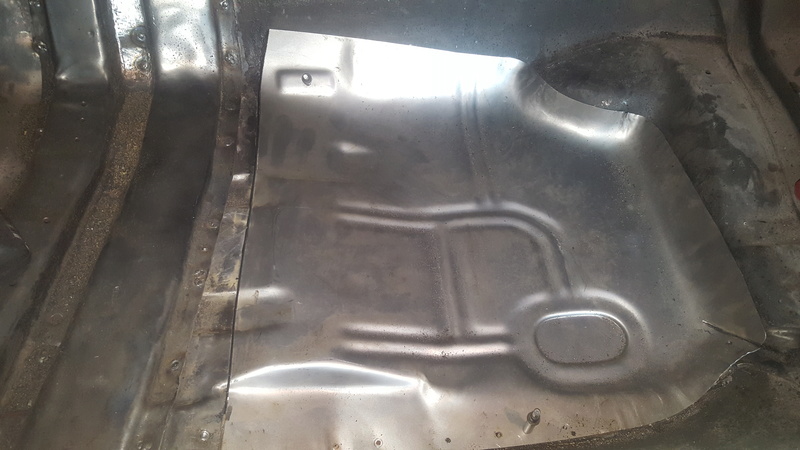

I had to remove 4 or 5 inches out of the passenger side floor pan. The front crossmember wouldn't have gone back in correctly without this modification.
