Where are you at picture - Page 9 Empty Re: Where are you at picture

Post by REVINKEVIN on Fri Nov 23, 2018 9:51 pm

I'm back

Where are you at picture - Page 9 Img_4210
Where are you at picture - Page 9 Img_4212
Where are you at picture - Page 9 Img_4211
REVINKEVIN
REVINKEVIN
G3GM Enthusiast
G3GM Enthusiast

Street Cred : 17

Back to top Go down

Where are you at picture - Page 9 Empty Re: Where are you at picture

Post by fasrnur on Fri Nov 23, 2018 11:12 pm

Very cool Kevin. I've always wondered about the "Oval" exhaust. Did you get the pipes to go over the rear diff too?
fasrnur
fasrnur
G3GM Enthusiast
G3GM Enthusiast

Street Cred : 7

Back to top Go down

Where are you at picture - Page 9 Empty Re: Where are you at picture

Post by REVINKEVIN on Fri Nov 23, 2018 11:39 pm

Thanks. What I am going to do is fit this up first and then have them make me some turn outs that exit in front of the back tires like some old NASCAR racer. I will have a lot of trimming to do but I think it will be well worth it.
REVINKEVIN
REVINKEVIN
G3GM Enthusiast
G3GM Enthusiast

Street Cred : 17

Back to top Go down

Where are you at picture - Page 9 Empty Re: Where are you at picture

Post by REVINKEVIN on Wed Dec 05, 2018 9:07 pm

Where are you at picture - Page 9 Zzz_fr10
Where are you at picture - Page 9 Zzzzz_10
REVINKEVIN
REVINKEVIN
G3GM Enthusiast
G3GM Enthusiast

Street Cred : 17

Back to top Go down

Where are you at picture - Page 9 Empty Re: Where are you at picture

Post by g3chevy on Wed Dec 05, 2018 9:40 pm

Hell yeah! That old girl looks great without clothes on lol!
g3chevy
g3chevy
Donating Member
Donating Member

Street Cred : 18

Back to top Go down

Where are you at picture - Page 9 Empty Re: Where are you at picture

Post by Zaptiah on Thu Dec 06, 2018 9:17 am

Nice 👍😀😀

Zaptiah
G3GM Member
G3GM Member

Street Cred : 2

Back to top Go down

Where are you at picture - Page 9 Empty Re: Where are you at picture

Post by 73ss on Thu Dec 06, 2018 8:42 pm

In the last pic, Is that a fuel pump?
73ss
73ss
G3GM Member
G3GM Member

Street Cred : 10

Back to top Go down

Where are you at picture - Page 9 Empty Re: Where are you at picture

Post by REVINKEVIN on Thu Dec 06, 2018 9:31 pm

Yes it is.  I made the cross brace and mounted the pre-filter and pump on it.  I measured everything out and it fits.  My exhaust will exit before the rear tires or dump.  I have to see what I can fit in there.  It is a Holley HP 125.  These pumps are large to say the least so some "magic" had to happen.  Here is a pic of me fitting it in and the tank with the 1/2" pick up unit.
Where are you at picture - Page 9 Fuel_t10
 Looks better now.Where are you at picture - Page 9 Fuel_p10
REVINKEVIN
REVINKEVIN
G3GM Enthusiast
G3GM Enthusiast

Street Cred : 17

Back to top Go down

Where are you at picture - Page 9 Empty Re: Where are you at picture

Post by 73ss on Fri Dec 07, 2018 6:18 pm

Thanks for re-posting the pic. I missed it earlier in the thread. That is a slick idea. I need to re-vamp my fuel system. The stock system is at it's limit. I couldn't find a good spot to mount a pump even with or below the tank.
73ss
73ss
G3GM Member
G3GM Member

Street Cred : 10

Back to top Go down

Where are you at picture - Page 9 Empty Re: Where are you at picture

Post by REVINKEVIN on Fri Dec 07, 2018 6:46 pm

No worries.  I still need to finish the front part of the fuel system.  I have one more filter to mount.  I also just received my clutch kit today so now I have everything to bolt my engine to my transmission.  That will be a HUGE day for the project.  Then I can put them in the frame and have my driveshaft built.  Speaking of the frame, today was the first day it was taken off of the trailer that I built it on.  Took me about 8 months of working under a tree, on a trailer, in the Texas weather to get to this point.  So, a little before and after pics.

Where are you at picture - Page 9 Zz_fra11
Where are you at picture - Page 9 Zz_fra10
REVINKEVIN
REVINKEVIN
G3GM Enthusiast
G3GM Enthusiast

Street Cred : 17

Back to top Go down

Where are you at picture - Page 9 Empty Re: Where are you at picture

Post by REVINKEVIN on Sun Dec 09, 2018 10:39 pm

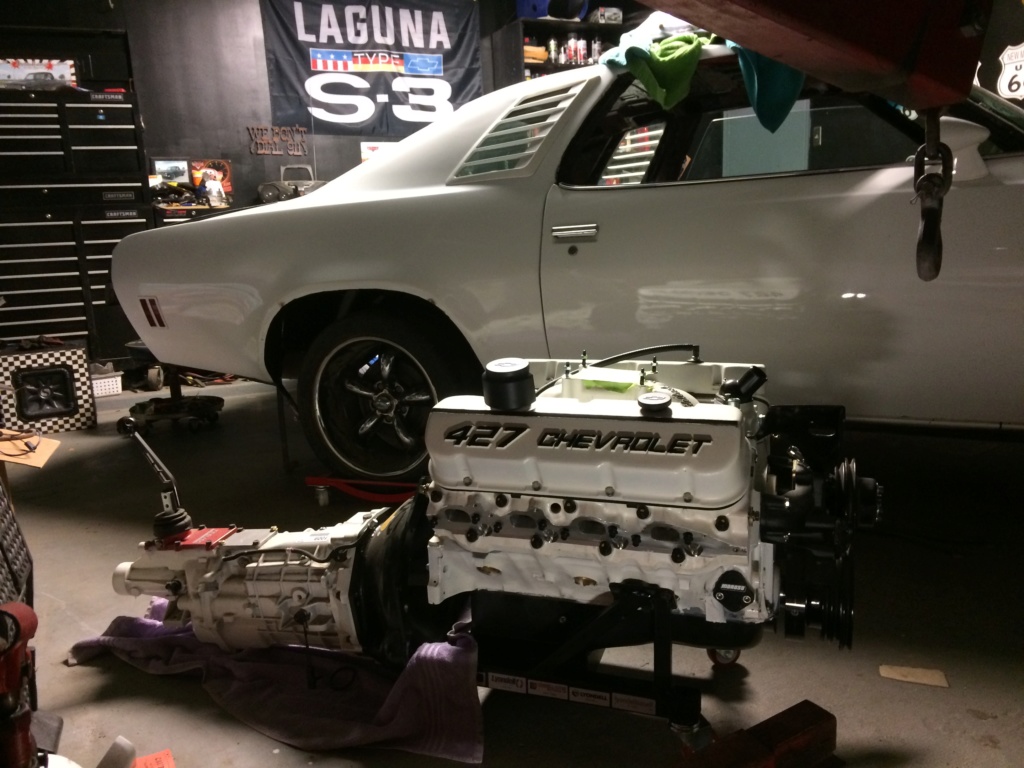

I had time to get the engine off the stand today and onto the rolling cradle.  My engine had lived on that engine stand all year.  I pulled the trans close to take a pic.  My friend is coming over next weekend and we are going to bolt everything together.  After that it's off to it's new home in the rebuilt frame.  g3chevy, where are you at???Where are you at picture - Page 9 Engine10
REVINKEVIN
REVINKEVIN
G3GM Enthusiast
G3GM Enthusiast

Street Cred : 17

Back to top Go down

Where are you at picture - Page 9 Empty Re: Where are you at picture

Post by g3chevy on Sun Dec 09, 2018 11:23 pm

Looking better with every post! On the road this week but be back next weekend to help!
g3chevy
g3chevy
Donating Member
Donating Member

Street Cred : 18

Back to top Go down

Where are you at picture - Page 9 Empty Re: Where are you at picture

Post by 73ss on Mon Dec 10, 2018 8:16 pm

revinkevin,
I spent some time under the car to try and fit a pump like you have. I hate to rain on your parade but, Is the tank going to clear your new cross brace with the pump? I only have a few inches between the diff cover and the front of the tank. I can get a measurement if you like. Maybe you are OK but I guess you wont know for sure until you get the body on. It's a great idea and hopefully everything fits.
73ss
73ss
G3GM Member
G3GM Member

Street Cred : 10

Back to top Go down

Where are you at picture - Page 9 Empty Re: Where are you at picture

Post by REVINKEVIN on Mon Dec 10, 2018 10:43 pm

Hey.  That is what the notch in the brace is for.  That is where the tubes from the sending unit come through.  I had the tank in my car/old frame when I made this.  It is tight but it all fits.  Then I transferred it to my other frame. The seam of the tank goes under the brace just a little.
REVINKEVIN
REVINKEVIN
G3GM Enthusiast
G3GM Enthusiast

Street Cred : 17

Back to top Go down

Where are you at picture - Page 9 Empty Re: Where are you at picture

Post by REVINKEVIN on Fri Dec 14, 2018 8:20 pm

Where are you at picture - Page 9 Aaa_en12
Where are you at picture - Page 9 Aaa_en11
Where are you at picture - Page 9 Aaa_en10
REVINKEVIN
REVINKEVIN
G3GM Enthusiast
G3GM Enthusiast

Street Cred : 17

Back to top Go down

Where are you at picture - Page 9 Empty Re: Where are you at picture

Post by Joe73 on Sat Dec 15, 2018 7:52 am

Nice work. Did you dial in the scattershield? How far off were the block dowels? Also, what thickness shims did you need for scattershield parallel ?
Joe73
Joe73
Donating Member
Donating Member

Street Cred : 73

Back to top Go down

Where are you at picture - Page 9 Empty Re: Where are you at picture

Post by REVINKEVIN on Sun Dec 16, 2018 6:07 pm

Hey Joe. The dowels on the block lined up right with no issues. Unfortunately this is when I had to make a Lowe’s run for some hardware. I asked my friend and he said he didn’t put any shims in. He did have a daily indicator out but I don’t know what he did with that. My problem now is I am almost 1/2” off on my motor mounts. I can’t get the engine to line up in the frame. I bought some mounts for the engine side that fit perfect. I also bought the motor mounts for the big block Laguna for the 73/74 year. I also tried with the stock mounts and the same thing happens. I put 2 rods through the motor side mounts and have 17”. The frame mounts are 16 1/2. No amount of fooling around with them gets me close.
REVINKEVIN
REVINKEVIN
G3GM Enthusiast
G3GM Enthusiast

Street Cred : 17

Back to top Go down

Where are you at picture - Page 9 Empty Re: Where are you at picture

Post by Joe73 on Sun Dec 16, 2018 6:18 pm

Interesting. I've only once seen the factory block dowels be correct after checking with a dial indicator. And no shimming of the housing? Wow, interesting.
Joe73
Joe73
Donating Member
Donating Member

Street Cred : 73

Back to top Go down

Where are you at picture - Page 9 Empty Re: Where are you at picture

Post by g3chevy on Sun Dec 16, 2018 10:21 pm

Hey Kevin! Not sure exactly what's going on with your motor mounts. But you might want to double check which holes you used for the big block mounts. They use different mount holes than the small block mounts.

Where are you at picture - Page 9 Motor_10
g3chevy
g3chevy
Donating Member
Donating Member

Street Cred : 18

Back to top Go down

Where are you at picture - Page 9 Empty Re: Where are you at picture

Post by REVINKEVIN on Sun Dec 16, 2018 10:36 pm

Hey Bill. Thanks for the pic. That is where I have the mounts. I am getting a little over a half inch difference between the holes on the engine brackets and the ones on the motor mounts. When you go to install the engine the same difference is the same as the hole alignment. What year where the engine mounts I got from you? They were off of one of your G3 big blocks so they should be fine. I will look for some different ones tomorrow and see if that makes a difference.
REVINKEVIN
REVINKEVIN
G3GM Enthusiast
G3GM Enthusiast

Street Cred : 17

Back to top Go down

Where are you at picture - Page 9 Empty Re: Where are you at picture

Post by 73ss on Mon Dec 17, 2018 7:47 pm

The engine bracket mounts are BB specific. They should have some numbers on them you can google or GM parts wiki to see if you have the BB ones. OPG or someone carries the correct brackets if you strike out.

My frame mounts do overhang on the cross member as shown in Bill's pic.
73ss
73ss
G3GM Member
G3GM Member

Street Cred : 10

Back to top Go down

Where are you at picture - Page 9 Empty Re: Where are you at picture

Post by REVINKEVIN on Mon Dec 17, 2018 11:30 pm

Hey 73SS, thanks for the input. I have searched for a more than a few hours on this topic and Bill and myself have talked about it as well. I can't seem to cross reference my part number of 0334605 that I got from Bill for what year it is but I did find this article. I might have to try spacing the block away from the mounts I have to try and gain that elusive 1/2".

https://www.hotrod.com/articles/pit-stop-big-block-vs-small-block-chevy-mounts-brackets-1974-body/
REVINKEVIN
REVINKEVIN
G3GM Enthusiast
G3GM Enthusiast

Street Cred : 17

Back to top Go down

Where are you at picture - Page 9 Empty Re: Where are you at picture

Post by g3chevy on Tue Dec 18, 2018 12:36 am

Hey Kevin, those motor mount brackets came out of a 66 SS Impala with a 454. So I'm thinking they should be the same as the ones on my 75 El Camino 454. I can take pics of them tomorrow for reference if you think that will help. Otherwise I can bring them down to you next time we get an opportunity to work on your beast.
g3chevy
g3chevy
Donating Member
Donating Member

Street Cred : 18

Back to top Go down

Where are you at picture - Page 9 Empty Re: Where are you at picture

Post by REVINKEVIN on Tue Dec 18, 2018 12:43 am

Hey. I have found that the G3 cars had their own mount for 73-75 big blocks. They don't make this part any more. It's funny that the El Camino has it's own mounts for some reason. I have seen some people have used the small block mounts and brackets. GM made the different mounts for the BBC cars to slightly adjust where the engine sits in the frame. It's not much but the article above does show the difference that you and I have talked about and measured before. On another note, I did a complete torque on the suspension today. I need to get this engine in the frame so I can measure for my driveshaft and swap my body.
REVINKEVIN
REVINKEVIN
G3GM Enthusiast
G3GM Enthusiast

Street Cred : 17

Back to top Go down

Where are you at picture - Page 9 Empty Re: Where are you at picture

Post by g3chevy on Tue Dec 18, 2018 1:10 am

That was a good article. I didn't realize these mounts were big block specific. I bet we could modify your set to match the ones I have. Or we could trying shimming the motor mounts like the article says. Either way, we can make it work one way or another.
g3chevy
g3chevy
Donating Member
Donating Member

Street Cred : 18

Back to top Go down
