Post by HDHugger Mon Sep 03, 2018 8:55 am

ISO a picture... 1975 Chevelle with swivel buckets... need to see how the floor console lines up on the back ... I think it should be straight down the middle but the holes in the floor pan (on the hump) make it offset to the driver's side a bit. This is a conversion from bench seat to the floor shifter, so the holes may but there for the console mounting brackets. If anyone can take a picture of this area from the back seat, from a car with original console and swivel buckets, I would appreciate it. Posting on the facebook site also. TIA!

HDHugger
G3GM Member
G3GM Member

Street Cred : 6

Back to top Go down

Floor console Empty Re: Floor console

Post by Mcarlo77 Mon Sep 03, 2018 10:35 am

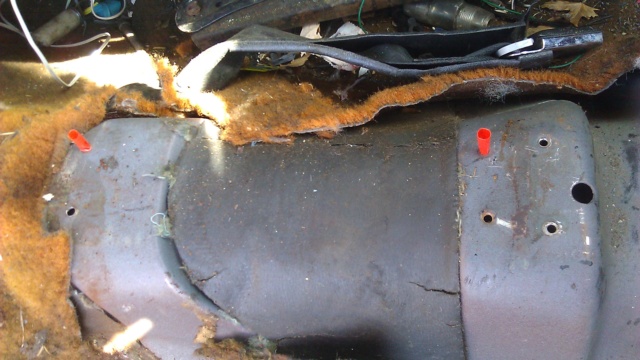

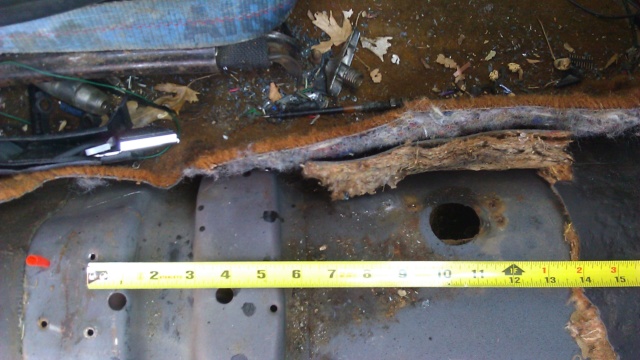

Pretty much straight down the middle of the hump, Jackie.  If there aren't holes for the rearward 4 mtg points, I would think there should be indents as to where to drill.  Then, of course, there is the front mtg bracket that was spot-welded to the hump.  It, too, is centered on the hump.  Only hole not centered is where the shift cable passes thru the hump.  That is offset towards the driver side (last photo shows that hole).
