1975-76 Laguna Stripe Measurements Empty 1975-76 Laguna Stripe Measurements

Post by g3chevy on Mon Oct 26, 2015 9:45 pm

Here are some pics of the correct measurements for 1975 and 1976 Laguna racing stripes. Hope this helps someone with their restoration.

1975-76 Laguna Stripe Measurements Stripe11

1975-76 Laguna Stripe Measurements Stripe12

1975-76 Laguna Stripe Measurements Stripe13
g3chevy
g3chevy
Donating Member
Donating Member

Street Cred : 19

Back to top Go down

1975-76 Laguna Stripe Measurements Empty Re: 1975-76 Laguna Stripe Measurements

Post by Mcarlo77 on Mon Oct 26, 2015 10:31 pm

Great information...thanks for providing this!
Mcarlo77
Mcarlo77
Donating Member
Donating Member

Street Cred : 70

Back to top Go down

1975-76 Laguna Stripe Measurements Empty Re: 1975-76 Laguna Stripe Measurements

Post by Limey SE on Mon Oct 26, 2015 10:34 pm

My Pics but thanks for Sharing LOL

___________________________________________
1977 Chevelle SE x2
One Mild original
one Wild NON original
Anthony
Limey SE
Limey SE
Management
Management

Street Cred : 92

Back to top Go down

1975-76 Laguna Stripe Measurements Empty Re: 1975-76 Laguna Stripe Measurements

Post by Limey SE on Mon Oct 26, 2015 10:37 pm

g3chevy wrote:Here are some pics of the correct measurements for 1975 and 1976 Laguna racing stripes. Hope this helps someone with their restoration.

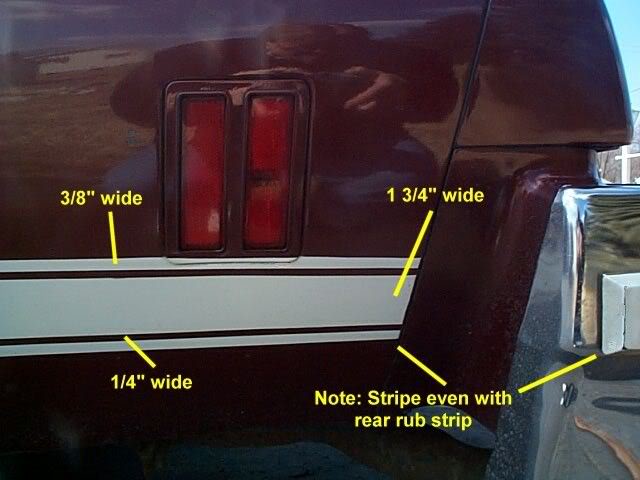

1975-76 Laguna Stripe Measurements Stripe13

And Also so were all Clear the stripes DO NOT go over the Side Marker Light you have to stripe that with the Cover off the stripe from Factory doesn't go over the Cover

___________________________________________
1977 Chevelle SE x2
One Mild original
one Wild NON original
Anthony
Limey SE
Limey SE
Management
Management

Street Cred : 92

Back to top Go down

1975-76 Laguna Stripe Measurements Empty Re: 1975-76 Laguna Stripe Measurements

Post by Limey SE on Mon Oct 26, 2015 10:42 pm

If you Look Closely in the reflection that's Doc from Doc and Spirals Webring, Who has since passed not to long after these Pics. I don't know how you got them but again Thank you for sharing.

___________________________________________
1977 Chevelle SE x2
One Mild original
one Wild NON original
Anthony
Limey SE
Limey SE
Management
Management

Street Cred : 92
